Rapid Ref : P23T225GR

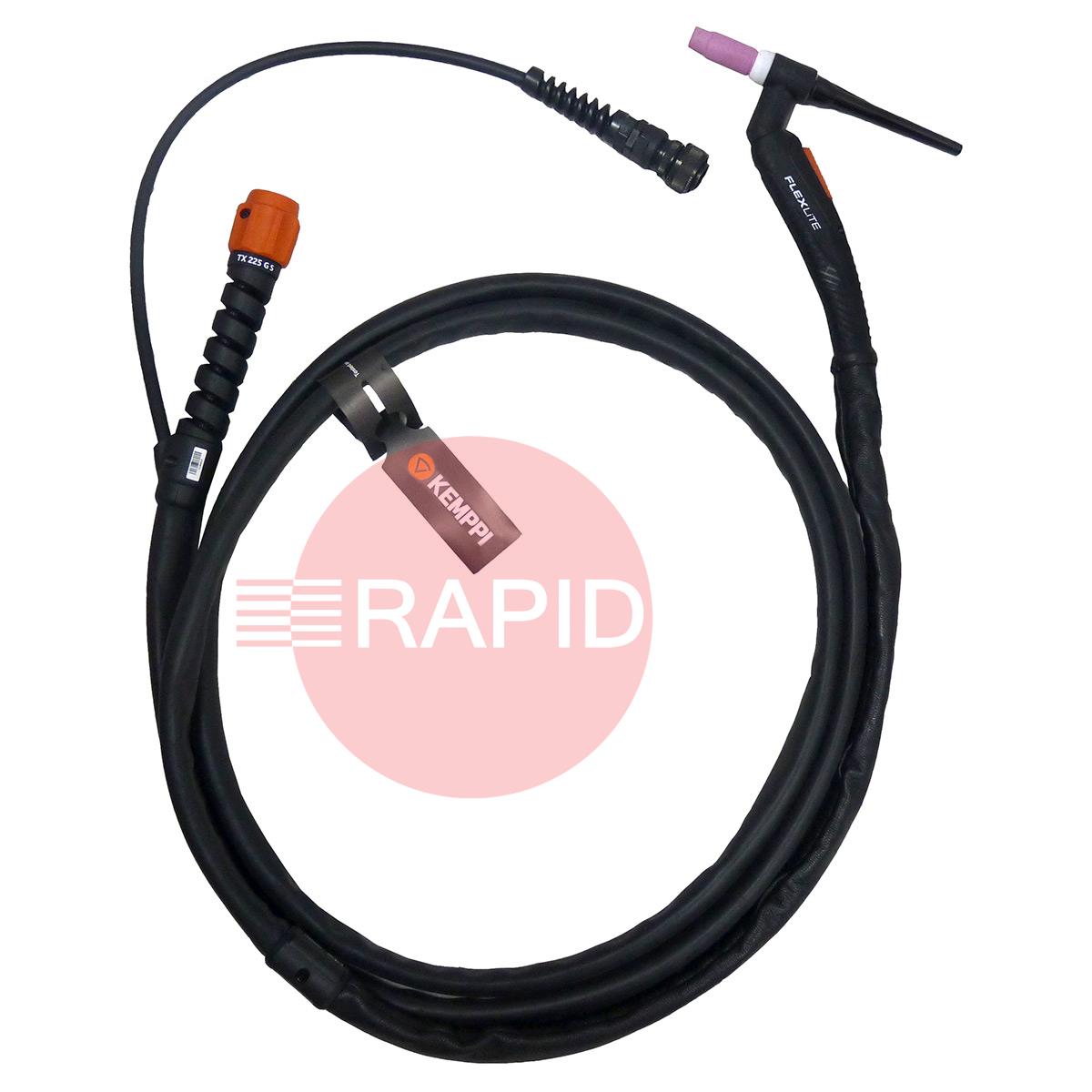

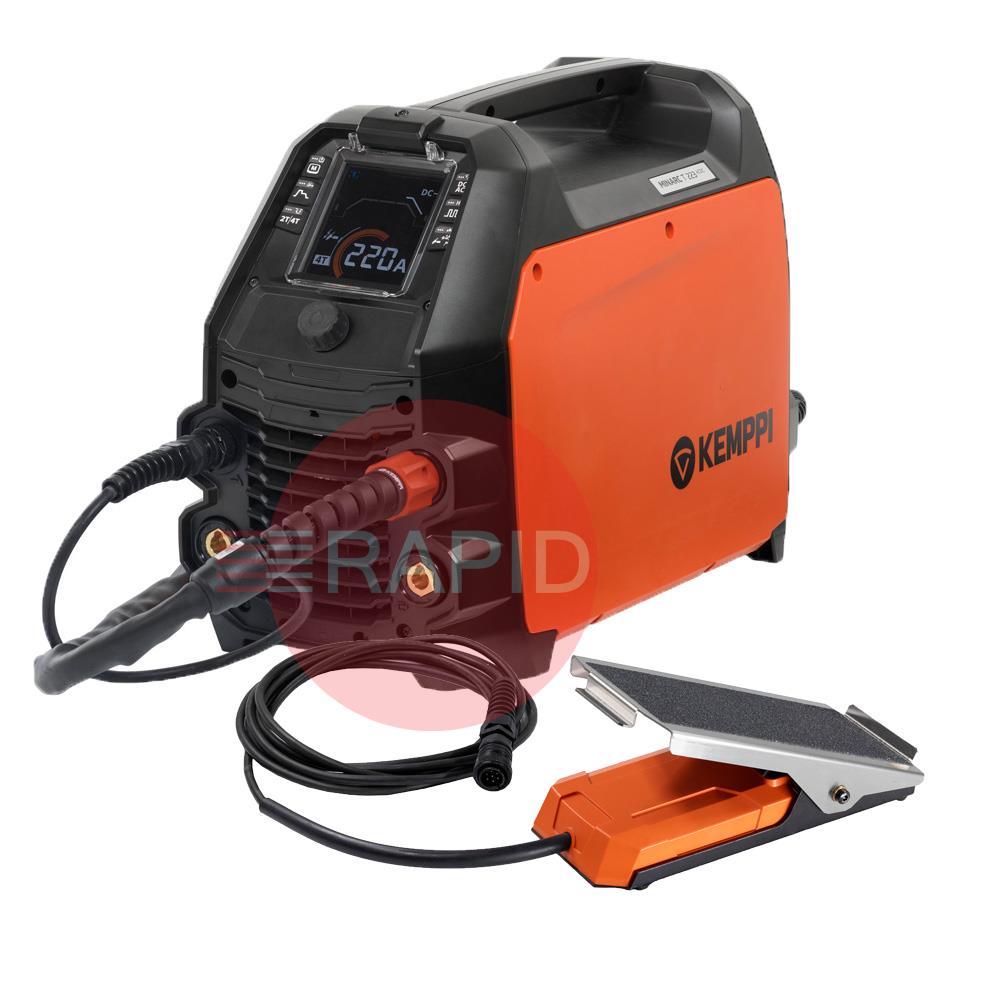

Kemppi Minarc T 223 AC/DC GM TIG Welder Air Cooled Package, with TX 225G Torch & Foot Pedal - 110/240v, 1ph P23T225GR

Prices From £2870.00 ex VAT

Select Option

Shop Parts

WELD AND CLEAN WITH ONE TIG MACHINE.

Minarc T 223 ACDC GM is a new 220 A single-phase AC/DC TIG welding machine with built-in electrolytic weld cleaning capability. This portable multi-voltage welding machine allows you to perform high-quality TIG welding and professional weld cleaning with one machine.

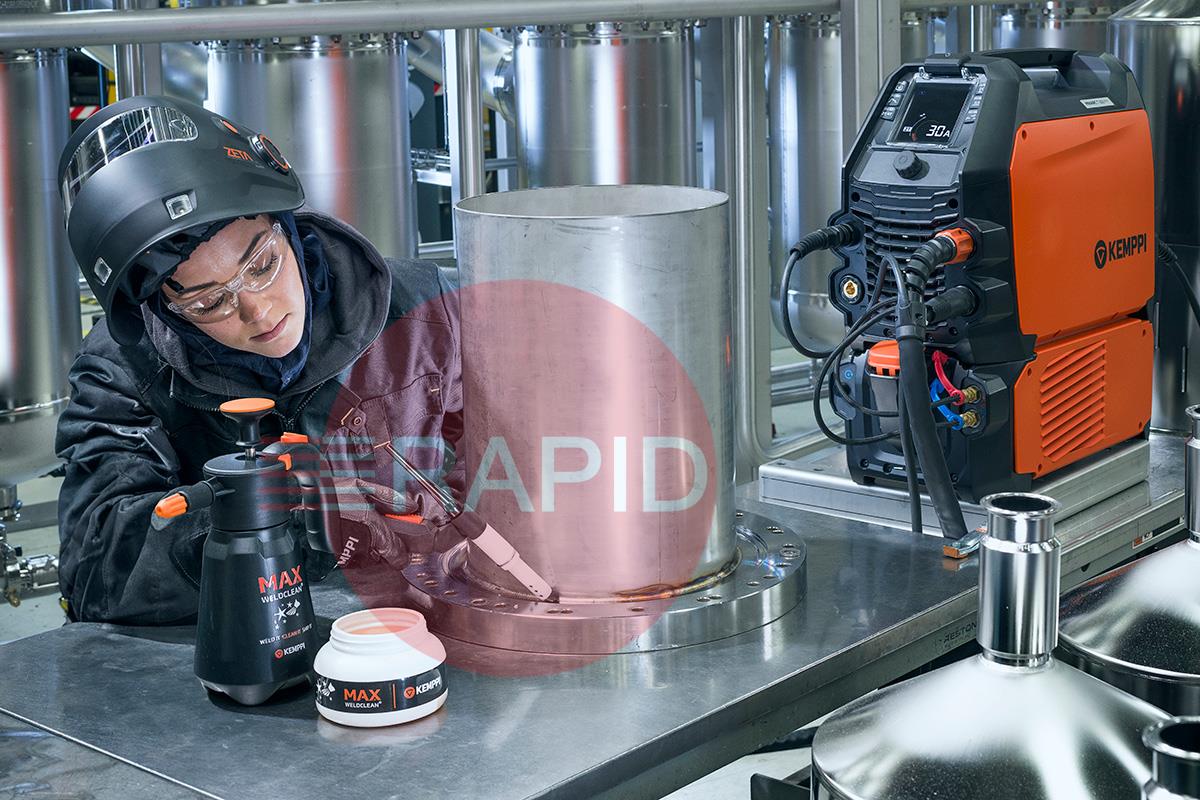

Take the Minarc T 223 ACDC GM anywhere on-site and save time by completing and finishing perfect welds in one spot. The new MAX WeldClean electrolytic cleaning process is simple and easy to use. It just takes a moment to convert your TIG torch to cleaning mode, where an efficient combination of electric current and phosphoric acid offers quick removal of oxidation and discolouration around the weld, delivering immaculate welds.

Powerful and versatile, the Minarc T 223 ACDC GM TIG welding machine has important features like the Auto Pulse function, AC frequency control, memory channels, and convenient remote control options. A large colour display with impact protection and a clear user interface makes choosing settings in a wide range of light conditions easy.

Premium multi-voltage AC/DC TIG welding machine with built-in weld cleaning function
DC+ and DC- MMA welding
220 A with 20% duty cycle from a 1-phase power supply
WeldClean electrolytic cleaning process speeds up post-processing of welds
Large LCD display
Four memory channels
Auto Pulse with frequency control
AC balance control
Three alternative transport cart options
Set parameters remotely with an optional on-torch remote

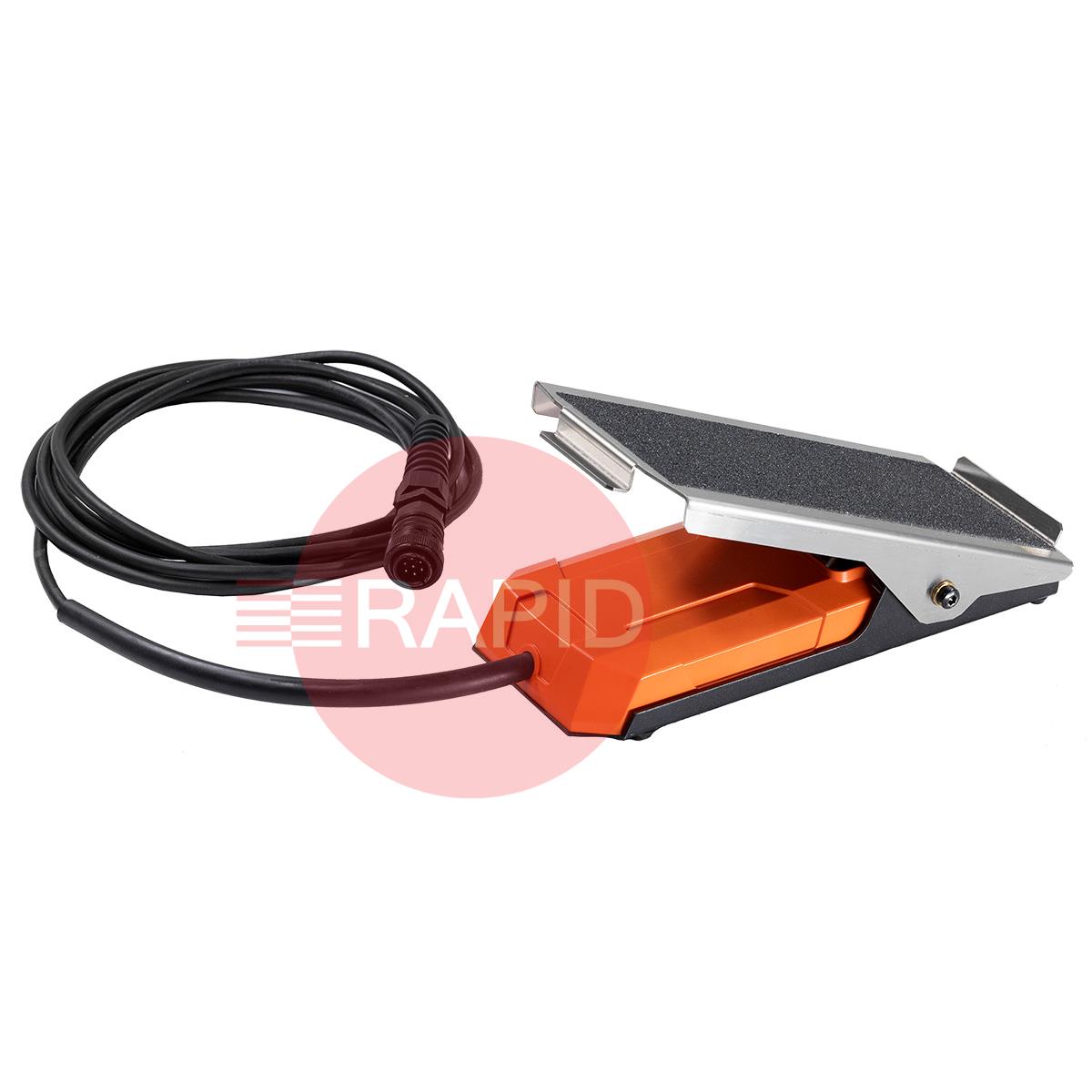

Control your welding with the FR41 wired foot pedal

Product Details

Portable and lightweight

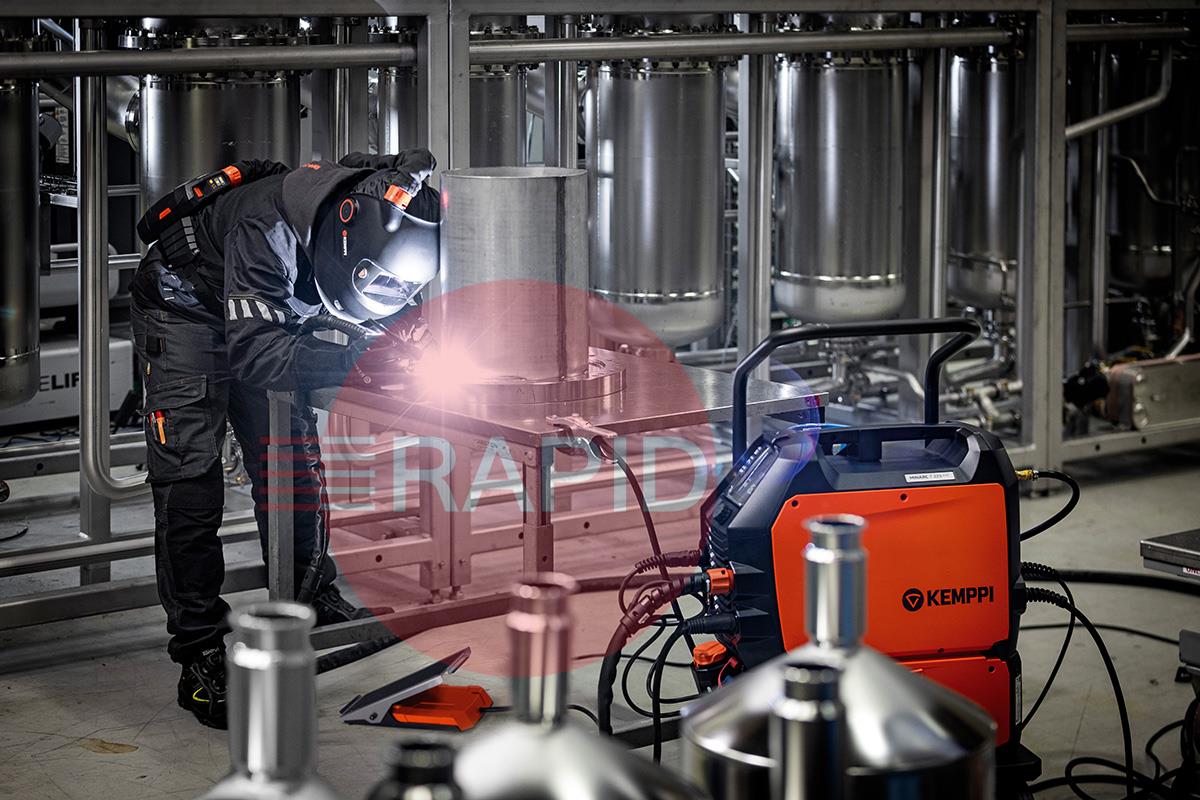

Its portable size makes Minarc T 223 ACDC GM easy to carry. Take it anywhere on-site for a convenient combination of powerful welding performance and easy-to-use electrolytic cleaning.

Powerful welding performance

Minarc T 223 ACDC GM is a professional TIG welder with high-quality welding performance and easy-to-use controls. It offers AC and DC TIG welding for working on a wider range of metals and thicknesses.

Weld and clean with one machine

MAX WeldClean lets you complete high-quality welds without using a separate weld cleaning machine. Save time and money by quickly activating cleaning mode for a powerful electrolytic weld cleaning process right after completing a weld. Post-processing the welds has never been so fast!

Fast and accurate control

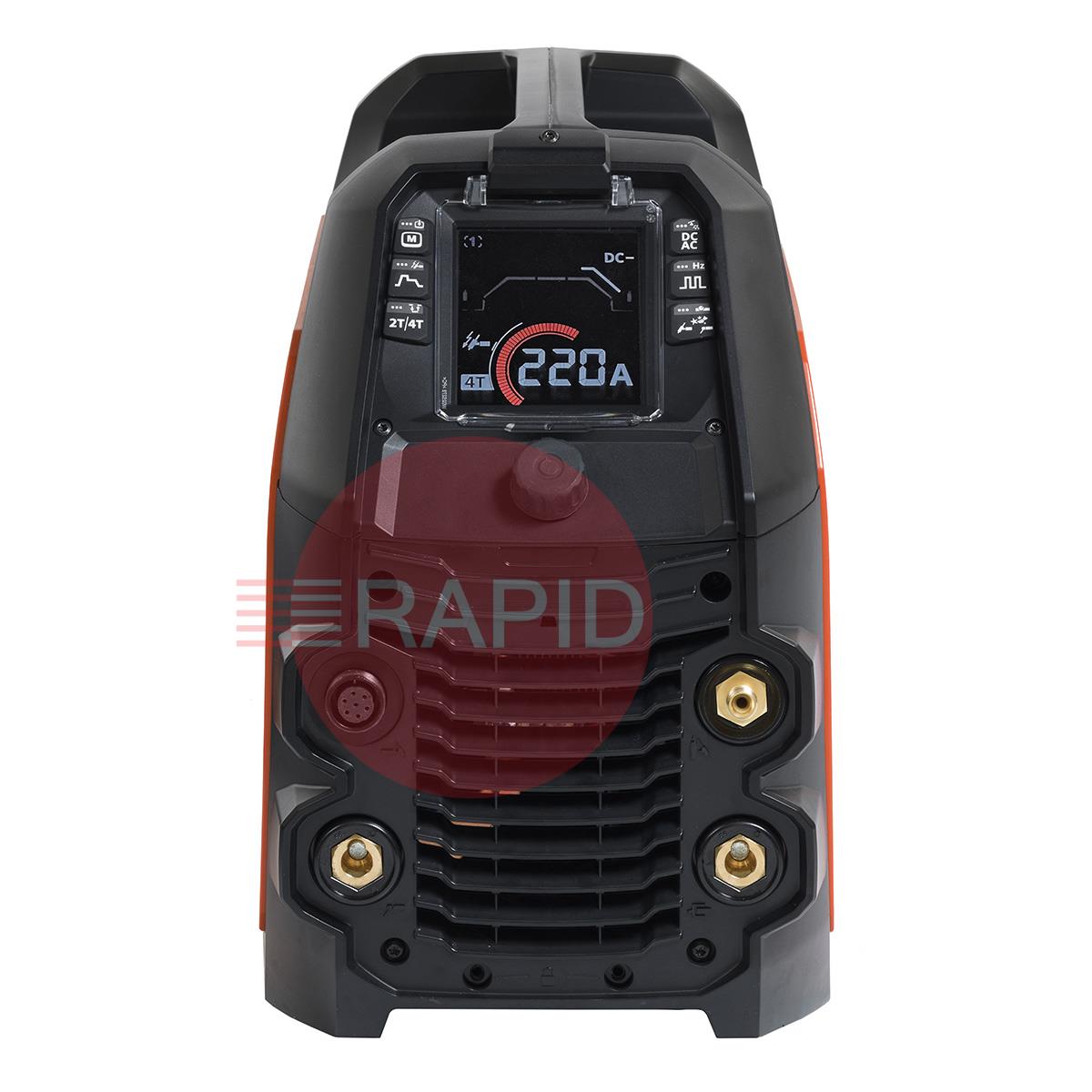

A large, clear, and bright colour LCD is easy to see in different work environments, and an intuitive control knob combined with simple on-screen process selection makes welding easier.
