  • CK-D2GS040P  2 Series Complete Front End Kit. Pyrex Cup 1.0mm.
Share this page on Facebook   Share this page on LinkedIn   Share this page on Twitter   Share this page on Whatsapp

Rapid Ref : CK-D2GS040P  Mfr Ref : D2GS040-P

CK 2 Series Complete Front End Kit, Pyrex Cup D2GS040-P CK-D2GS040P

Click here to see what's included
£30.33  EX VAT
SSP Suggested Selling Price = £60.65  YOU SAVE £30.32
 Buy in 3 easy interest free payments of £10.11 with
Select Option

CK Worldwide's Gas Saver™ front-end kit allows users to save up to 40% of shield gas consumption while providing better shield gas coverage patterns. With better shielding gas coverage patterns the welder can extend the tungsten up to 6 x the diameter of the electrode beyond the edge of the gas cup (This is achieved in draft-free areas using argon gas).

Alumina push-on or Pyrex high-temperature glass cups are available. Alumina cups are durable, impact-resistant and handle high-temperature welding applications. Pyrex glass cups are used in applications where visibility is an issue such as inside corners, inside pipe, around tubing, etc.

The Gas Saver kits will retrofit 2 series (CK9, CK20) torches or competitive brand equivalents using a replaceable white Teflon heat shield on a silicon rubber torch body.

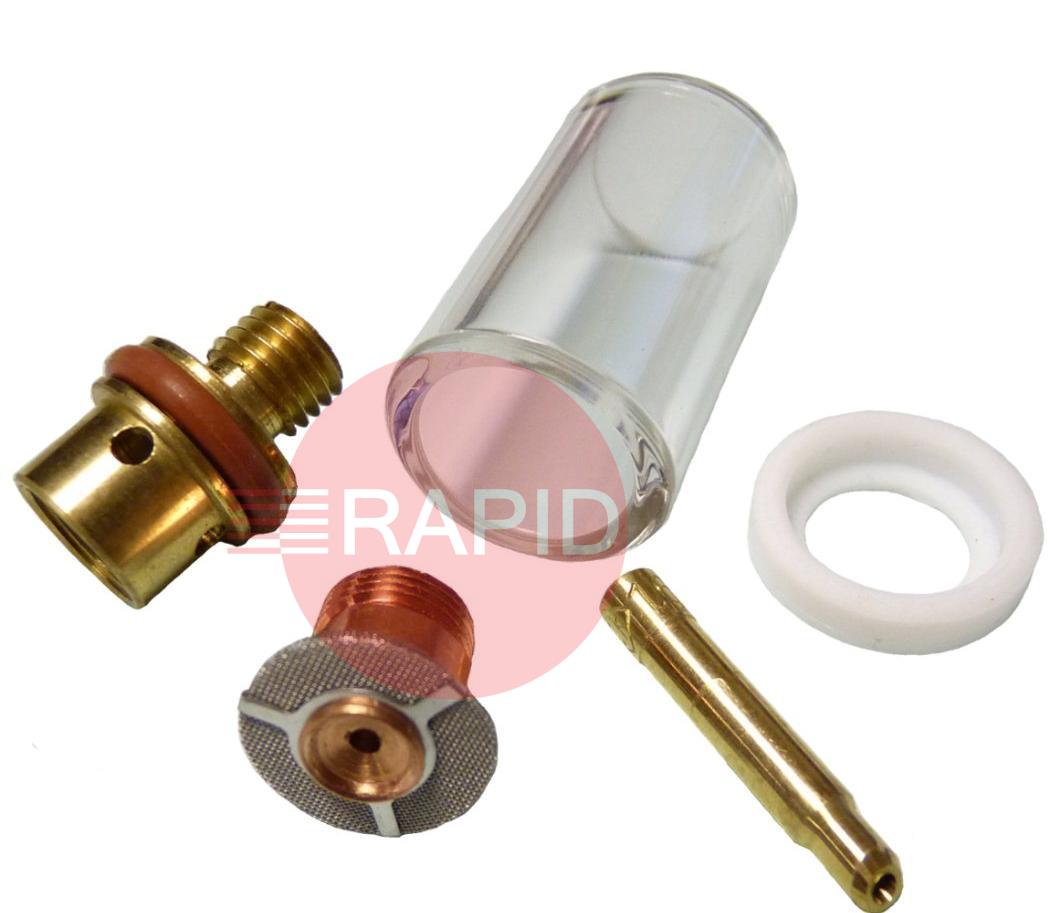

CK Gas Saver Kits

Part # Description Quantity
2P8GS CK #8 Pyrex Cup - 2/3 Series Gas Saver, 12.7mm bore x 32.6mm length 1
2C040GS CK Wedge Collet - 2 Series Gas Saver, 1.0mm 1
2HSGS CK Standard Heatshield - 2 Series Gas Saver 1
2CBGS CK Standard Collet Body - 2 Series Gas Saver, One Size Fits All 1
TAS040GS CK Tungsten Adapter - 2/3 Series Gas Saver, 1.0mm 1
